The 9 Main Types of Drill Pipe Float Valves

Drill Pipe Float Valves (DPFVs) are utilized in over 230 drilling rigs in Saudi Arabia. Often called non-return valves, DPFVs are a critical component that serves as a check valve, preventing mud, cuttings, and gas from entering the drill. However, choosing from 9 types of Drill Pipe Float Valves in Saudi Arabia is essential to optimize drilling efficiency and save time across the offshore operations.

Here, we have curated the very list, explaining why choosing specific types is important, what the specific type is and their operational purpose. Therefore, helping you choose the most suitable one!

Importance of Choosing the Right Drill Pipe Float Valves

Drill Pipe Float Valves (DPFVs) or non-return valves are essential downhole check valves. Not acting as one, but being a critical component in the drilling operations, the DPFVs play a crucial role in preventing drilling mud, cuttings, and gas entering the drill.

Choosing the right types of Drill Pipe Float Valves in Saudi Arabia is necessary due to these factors:

• Operational Efficiency and Time Saving: The valves prevent cuttings from entering the drill string that can cause plugging in the bit jets. And, by stopping the mud from filling inside the pipe, these valves prevent drilling fluid spilling on the rig floor.

• Well Control and Safety: Drill Pipe Float Valves provide trustworthy sealing against the backflow of the cuttings and mud. This helps them prevent catastrophic blowouts and fatal accidents. As safety is a critical component, choose only a trusted and reliable Drill Max Float Valves Supplier in Saudi Arabia.

• HPHT Capability: The Drill Pipe Float Valves are built to withstand high pressure/high temperature environments at the drilling rigs in Saudi Arabia. They can handle high pressure of 7,500 to 10,000 PSI, and temperature ranging from 250°F to 450°F (121°C to 232°C).

• Extreme Condition Durability and Efficiency: The DPFVs are engineered to work efficiently in harsh environments. They work with maximum efficiency in the extreme temperatures, resist corrosion from hydrogen sulfide and carbon dioxide, and handle abrasive drilling fluids and metal debris.

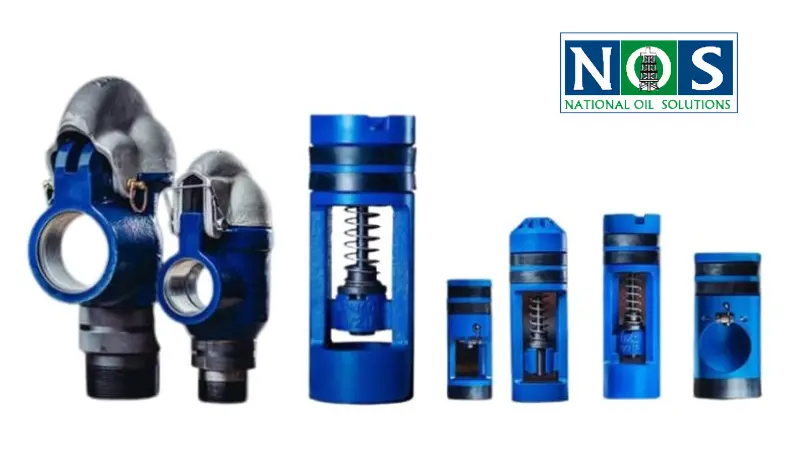

The 9 Types of Drill Pipe Float Valves in Saudi Arabia

There are 9 types of Drill Pipe Float Valves available in Saudi Arabia, serving precise operation and meeting specific requirements; each one is utilized for different purposes. Here are the 9 types:

1. Model F (Plunger Type)

Often utilized at the Saudi Arabian oilfields, Model F Drill Pipe Float Valves provide immediate shut-off against the backflow. As the standard types, these valves can operate up to 7,500 PSI.

• Mechanism: Plunger/valve mechanism
• Common Sizes: 1F, 2F, 3F, 4F, 5F, 5R, 6F, 6R, 7F, and 8F

2. Model FA (Ported Plunger Type)

The Model FA is a downhole non-return safety valve that is primarily used for preventing backflow of the drilling fluids and cuttings into the string. They allow the partial filing of the drill pipe due to the featured ported piston.

• Operation: Help maintain a steady flow of fluids
• Suitable for: H2S and standard drilling

3. Model FC (Automatic Fill Plunger Type)

Model FC is an automatic fill plunger-type valve from the 9 types of Drill Pipe Float Valves that is specifically designed for oil and gas drilling. This allows the drill string to automatically fill with mud from below as it moves through the hole.

• Mechanism: Unique key assembly and slotted stem
• Limitation: It must not be used for Air Drilling

4. Model G (Full Flow Flapper Type)

Model G is a full-flow flapper-type non-return valve that is installed in the drilling pipe string. It operates by completely opening when the drilling mud flows down, but shuts down immediately when the flow stops. It reduces downtime by preventing abrasive drilling fluids from backing up in the pipe.

• Pressure: Handles high pressure with corrosion resistance
• Suitable For: Highly abrasive drilling fluids

5. Model GA (Flapper Type)

Model GA is a flapper-type downhole valve that is widely utilized in oil and gas drilling in Saudi Arabia. The valve is designed for automatic filling, provides pressure monitoring, and allows the drilling pipe to fill from the bottom during run-in.

6. Model GC (Automatic Fill Flapper Type)

Model GC is an alternative automatic flapper-type non-return valve that features a self-releasing mechanism, allowing the flapper to automatically open during run-in. This enables the drilling string to be filled from the bottom, reducing pressure and saving time.

• Mechanism: Self-releasing mechanism
• Suitable For: High flow drilling operations

7. Model GBA (Air Drilling Valve)

Model GBA is an air drilling valve type, which is specifically designed for air or oil drilling operations. This model of 9 types of Drill Pipe Float Valves is widely used in the Middle East and Saudi Arabia, as it is highly efficient in handling high pressure, light fluids, and velocities.

• Flapper Type: Metal flapper
• Mechanism: Automatic fill mechanism

8. Model GS (High Flow/Solid State)

The Model GS is recognised as a premium check valve, which is utilised in Saudi Arabia for its high durability and low maintenance, while providing a steady and non-pulsating flow. It uses a non-ported solid flapper that is built to operate in harsh environments, high temperatures of the Gulf, and resist corrosion, ensuring longer life and efficient drilling operations.

• Flapper Type: Non-ported, solid flapper
• Suitable For: Moving large amounts of liquid quickly

9. Model GAS (Automatic Fill High-Flow)

Similar to the Model GS, GAS is an automatic fill high-flow valve. However, this model (GAS) features wear-resistant tungsten-carbide inserts that are ultra-hard cutting and tooling components. These inserts withstands high friction, heat, and abrasion and drilling operations.

• Operation: Full fluid velocity
• Suitable For: High flow and deep-well drilling

Conclusion

Drill Pipe Float Valves are a critical pillar to the drilling operations in Saudi Arabia. Utilized as an aid to the blowout or backflow of drilling fluids, cuttings, and gas, they provide high durability while improving the operational efficiency in drilling. Here, we discussed the 9 types of Drill Pipe Float Valves that you can get in Saudi Arabia. We explore their operation, mechanism, suitability, and more. Therefore, helping you compare and choose the best for your drilling operations.

National Oil Groups is a renowned supply chain solution provider in the Kingdom of Saudi Arabia. As a specialised service provider and equipment and spare parts supplier across oil, gas, marine, and more, we are a leading Drill Max Float Valves Supplier in Saudi Arabia. With commitment to make your drilling operations smooth and safe, we ensure that our supplies meet industrial safety and compliance standards. Thus, contact us to get your extensive range of Drill Pipe Float Valves in Saudi Arabia.
